3 Pioneer sector 3
Overview
DESCRIPTION
4-storey ramp up logistics and warehouse facility with ancillary office building situated within Jurong Industrial Estate. It is well connected to major expressways like Ayer Rajah Expressway (AYE), Pan Island Expressway (PIE), as well as Gul Circle MRT, Joo Koon MRT and Joo Koon Bus Interchange.
The building enjoys easy access to Jurong Island, Second Link Causeway and Megaport.
ADDRESS
3 Pioneer Sector 3
Singapore 628342
Building Specifications
Master Plan
Business 2
Net Lettable Area
Approx 646,000 sq ft
Area Available
5,000-646,000 sqft
Floor to Floor Height
Main block 1st level: 11.0m
Main block 2nd level: 5.0m to 7.5m
Annex block 1st to 3rd level: 9.0.m
Annex block 4th level: 12.0m
Floor Loading
Main block 1st level: 32 kN/m2
Main block 2nd and 3rd level: 20kN/m2
Annex block 1st level: 50 kN/m2
Annex block 2nd and 3rd level: 20 kN/m2
Annex block 4th level: 25 kN/m2

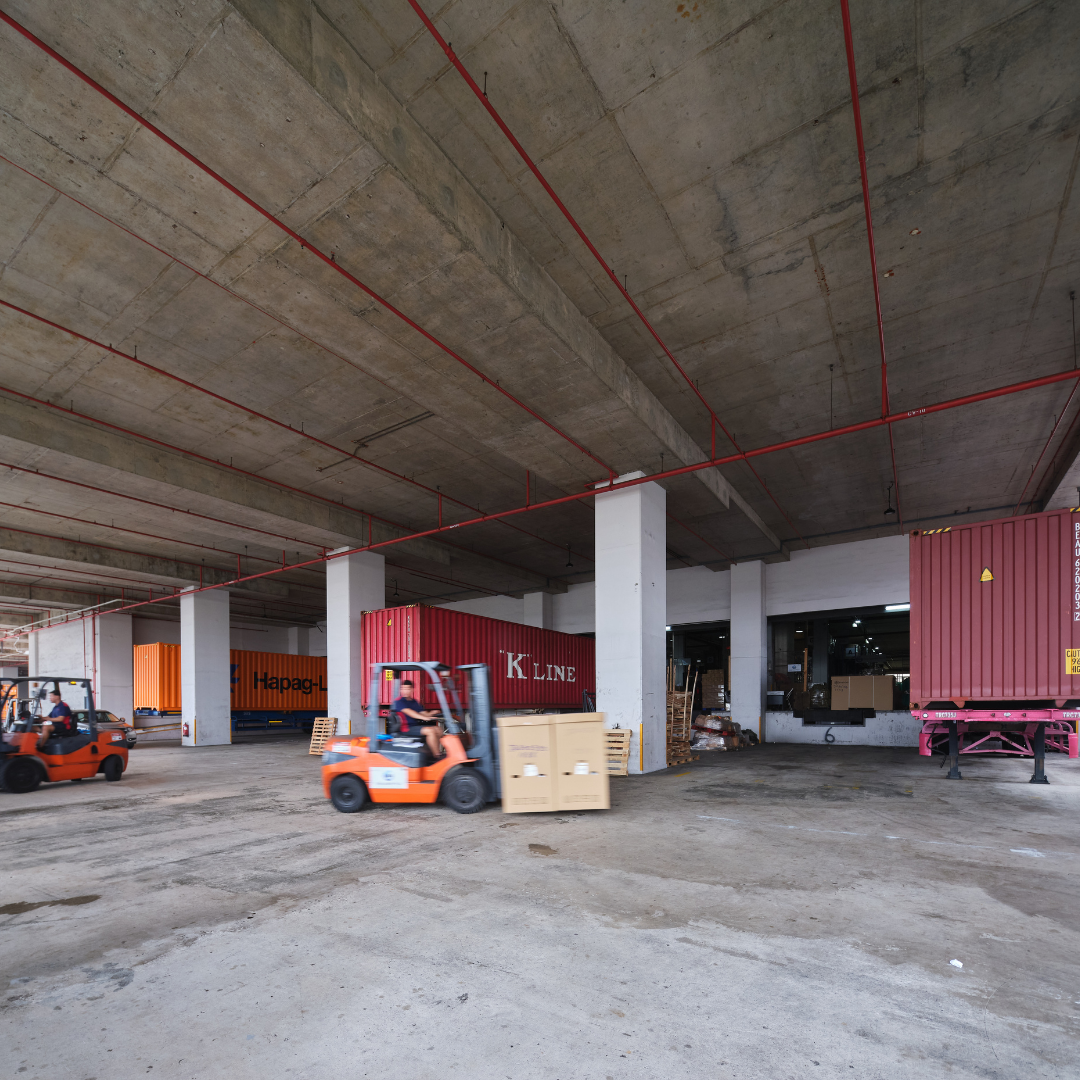

Loading Bay
Main block 1st and 2nd level: 7 nos. dock levellers each level
Annex block: 10 nos. dock levellers each level
Power Supply
32 Amp to 300 Amp (warehouse)
Vertical Access
2 (1 tonne) Passenger lift
Parking
26 car park lots; 40 container trailer lots
Accessibility
4 min drive to Gul Station on MRT station, 1 min walk to bus stop
Features/Facilities
Ramp up with dedicated loading docks

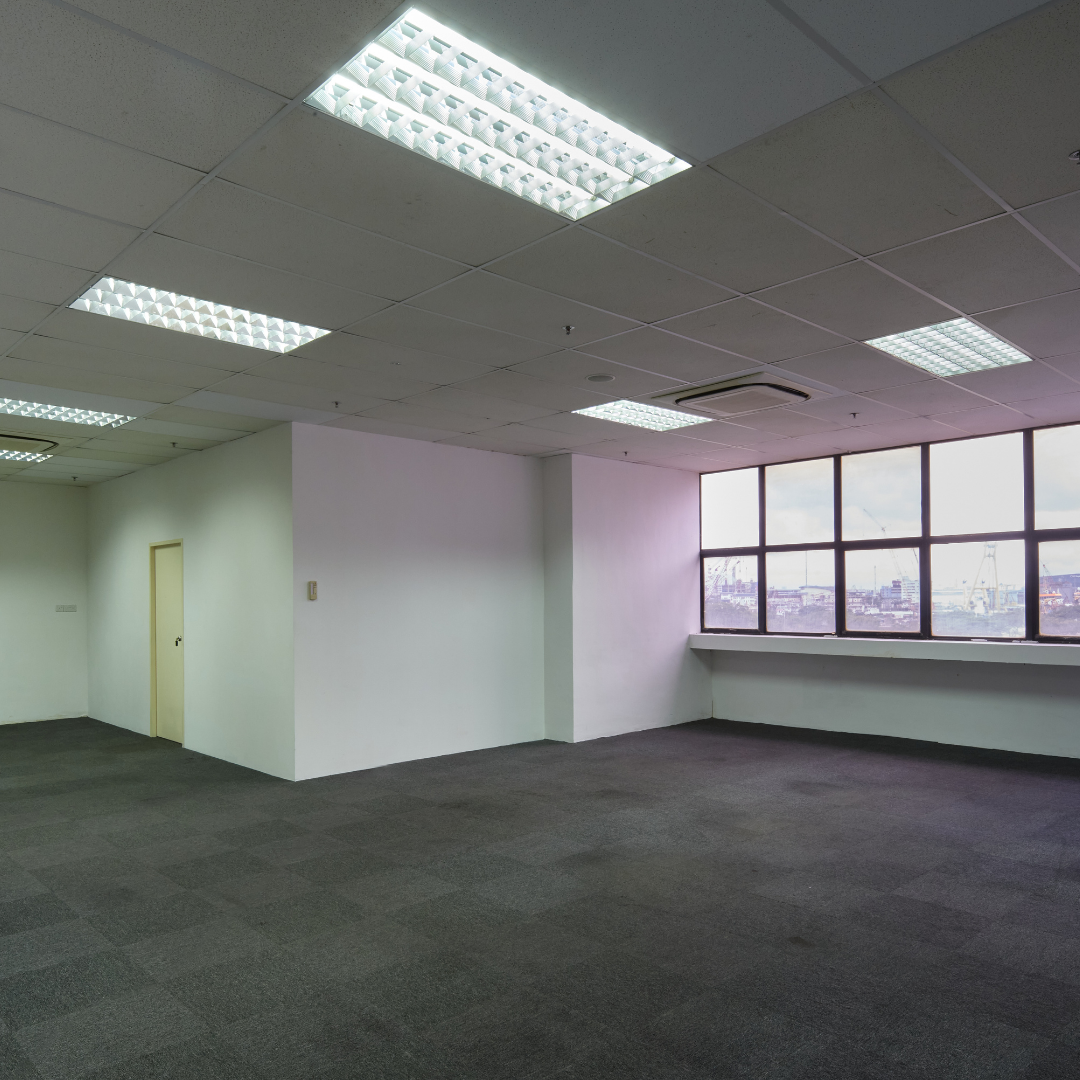

Image Gallery

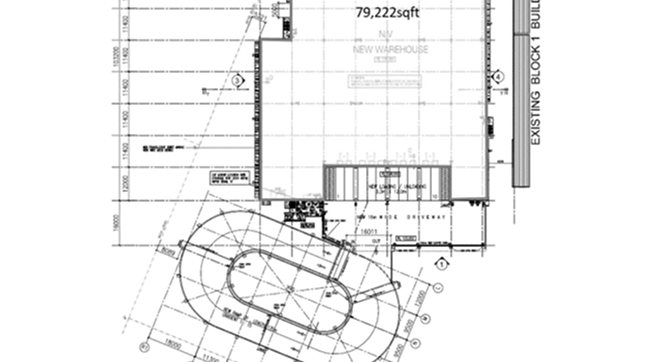

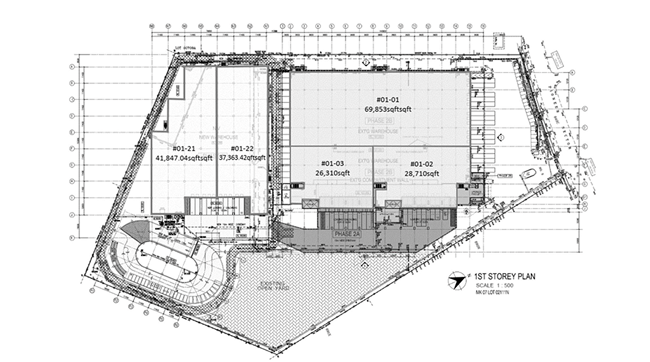

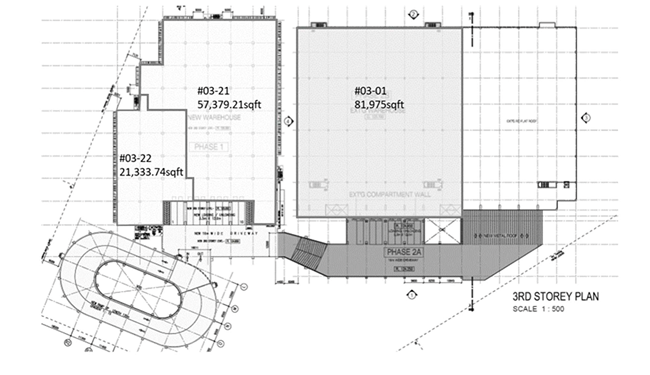

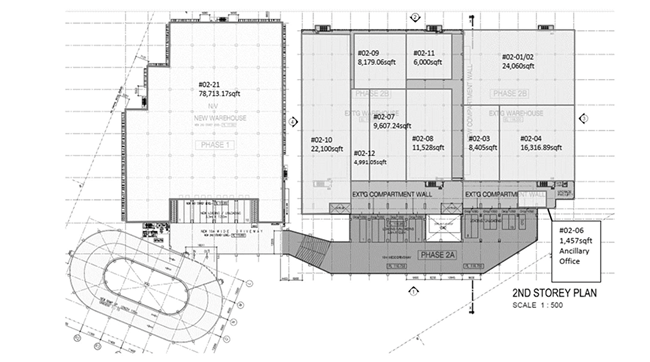

Floor Plans
